Gene Mutation and Protein Variants |
REVIEW

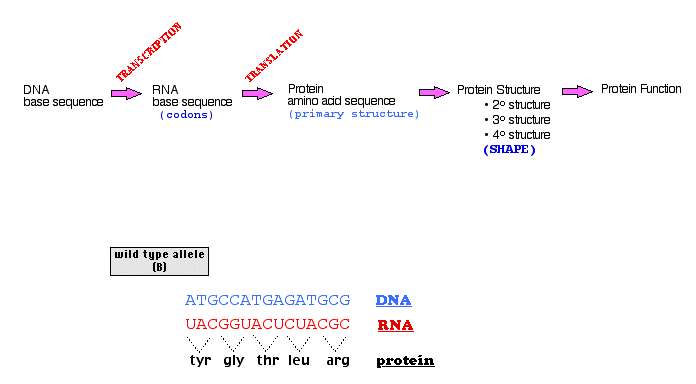

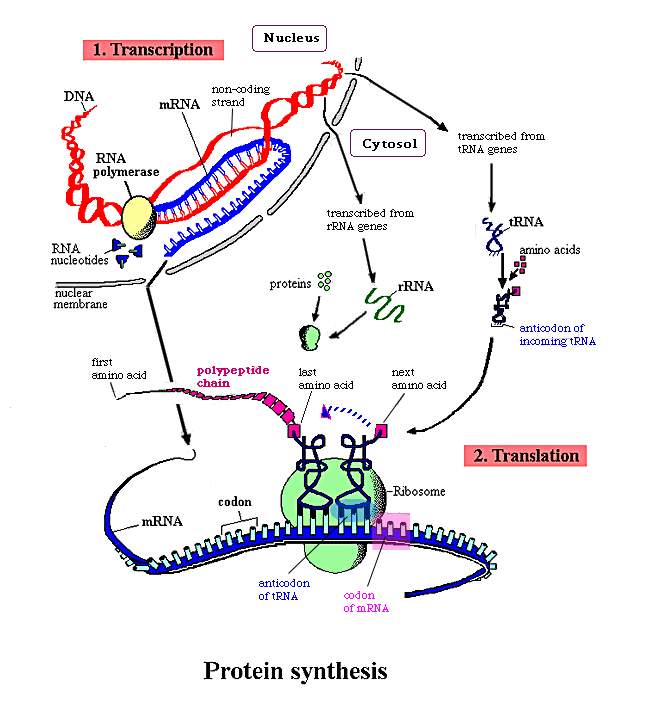

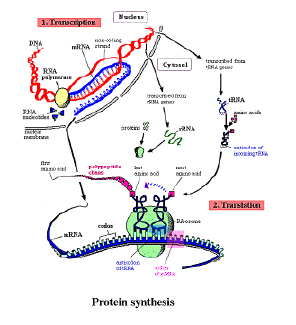

The
sequence of bases in DNA codes for the amino acid sequence (primary structure)
of a protein.
Click
on the image to see it full-size.
|

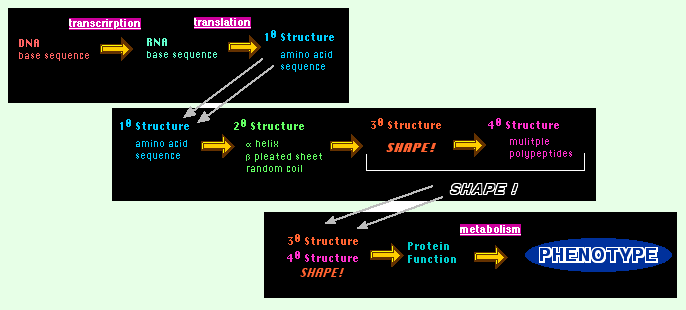

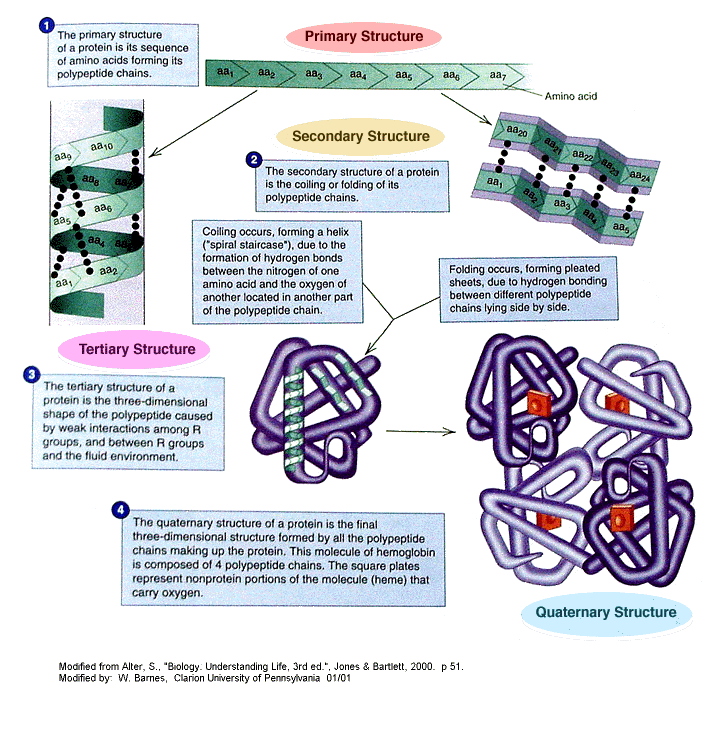

The
primary structure of the protein determines secondary structure and tertiary
structure .... and thus SHAPE.
Click on the image to see it full-size. Click here to review the page |

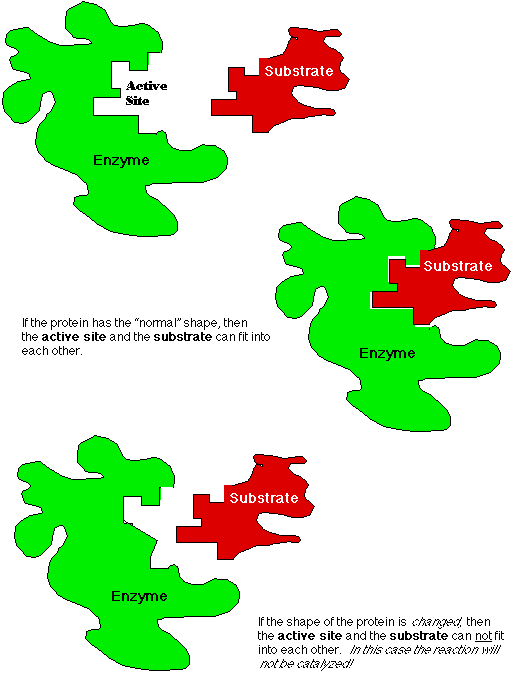

The
SHAPE
of the protein enables it to fit with a ligand and perform
its FUNCTION.
Click
on the image to see it full-size.
|
.............. DNA is only a chemical - and it can be damaged easily. What
happens if the DNA molecule is damaged? Then
we would have a changed sequence!
ORIGINAL SEQUENCE: | ATGCCATGAGATGCG | Wild Type Allele |
CHANGED SEQUENCE: | ATGCCGTGAGATGCG | Mutant Allele |
So we can have 2
versions of the gene ......... these are called alleles
of
the gene. In this case we have the wild
type allele
(the "normal" version found in wild populations) and a mutant
allele
(the changed version).
......... in fact we can have many mutant alleles because a gene may be several hundred bases long ....... and any base can be changed to any of 3 others!

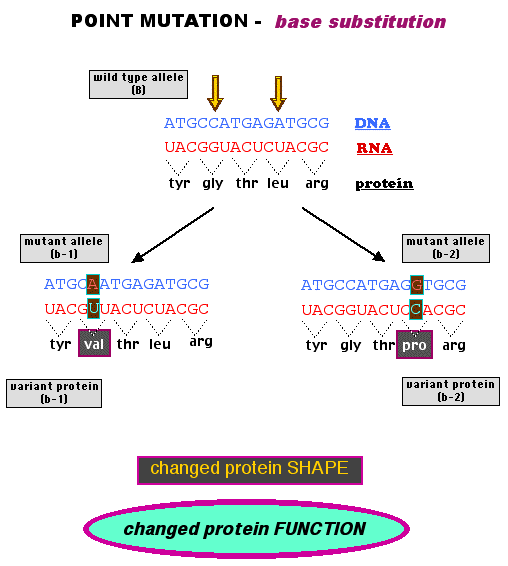

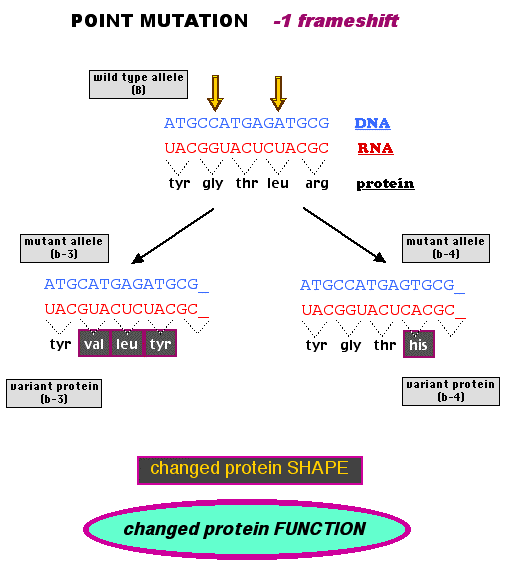

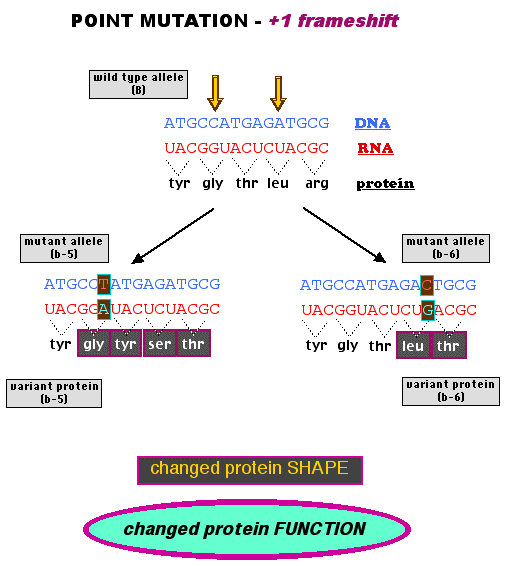

If a mutation occurs in the DNA of the gene what is the effect on the protein it codes for ? |
CLICK on the image to see it full-size. |
|
|
