UVM COSMOGENIC SAMPLING

---

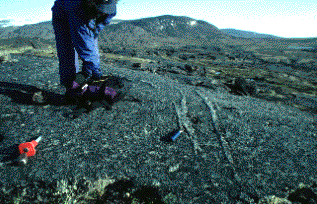

We sample most outcrops with a hammer and chisel. The Baffin Island outcrop pictured below had striated quartz viens demonstrating that little erosion had taken place.

---

We locate outcrops using airphotos, GPS and topographic maps.

---

We take great care to protect valuable samples!

---

We document each sample using the form below and using poloroid photos.

SAMPLE ID ESTIMATED AGE (KY) SAMPLER
SITE QUAD NAME
ELEVATION (m) LATITUDE LONGITUDE
LITHOLOGY QUARTZ % OLIVINE %
THICKNESS (cm) RELIEF OF SURFACE (cm)
ORIENTATION OF SAMPLED SURFACE STRIKE DIP
SAMPLE TYPE BOULDER BEDROCK SOIL
HORIZ0N GEOMETRY (DEGREES SHIELDED FROM HORIZONTAL)
0-45 45-90 90-135 135-180 180-225 225-270 270-315 315-360

OUTCROP/BOULDER GEOMETRY (m) LENGTH WIDTH HEIGHT
DISTANCE OF SAMPLE FROM EDGES (SHOW IN SKETCH) cm
FRESH LIGHTLY WEATHERED MODERATELY WEATHERED VERY WEATHERED
SURFACE HARDENING YES NO
ESTIMATED EROSION OF SURFACE (cm)
STRIATED YES NO VENTIFACTED YES NO
NEARBY VEGETATION
MARKED ON AIRPHOTO Y OVERVIEW PHOTO #
MARKED ON MAP Y SAMPLE SITE PHOTO#
DESCRIBE GEOMORPHIC ENVIRONMENT AND SAMPLE LOCATION
